D-Sub connector, contacts, coding system
D-Sub connector, contacts, coding system

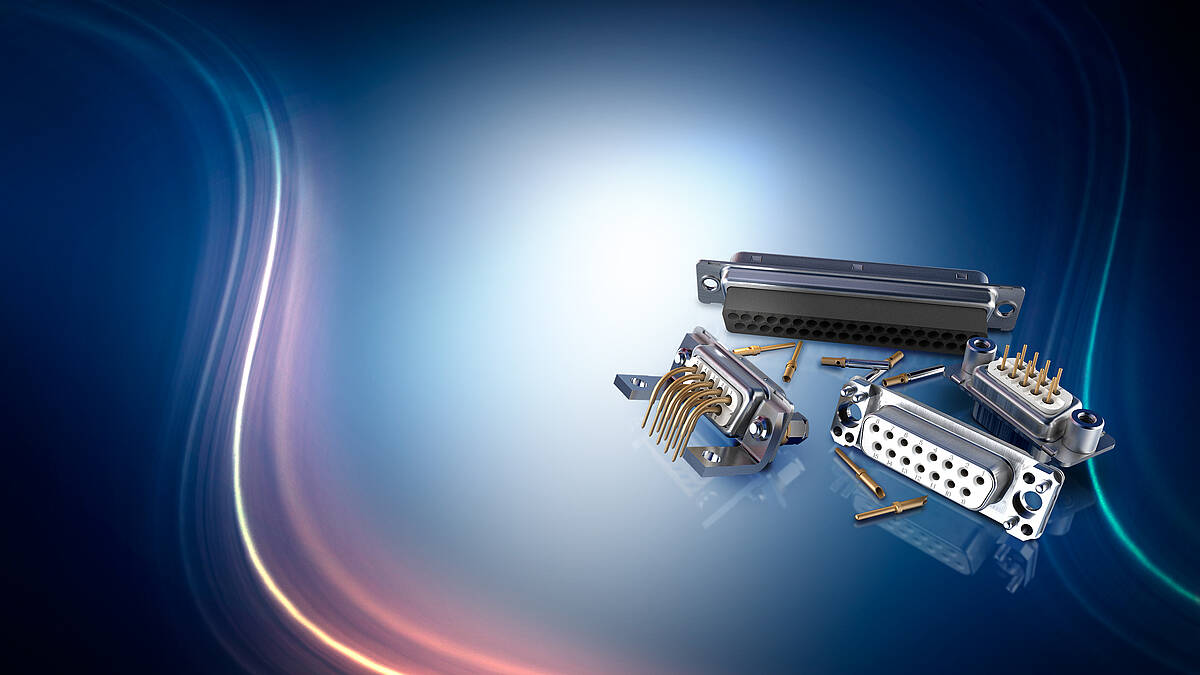

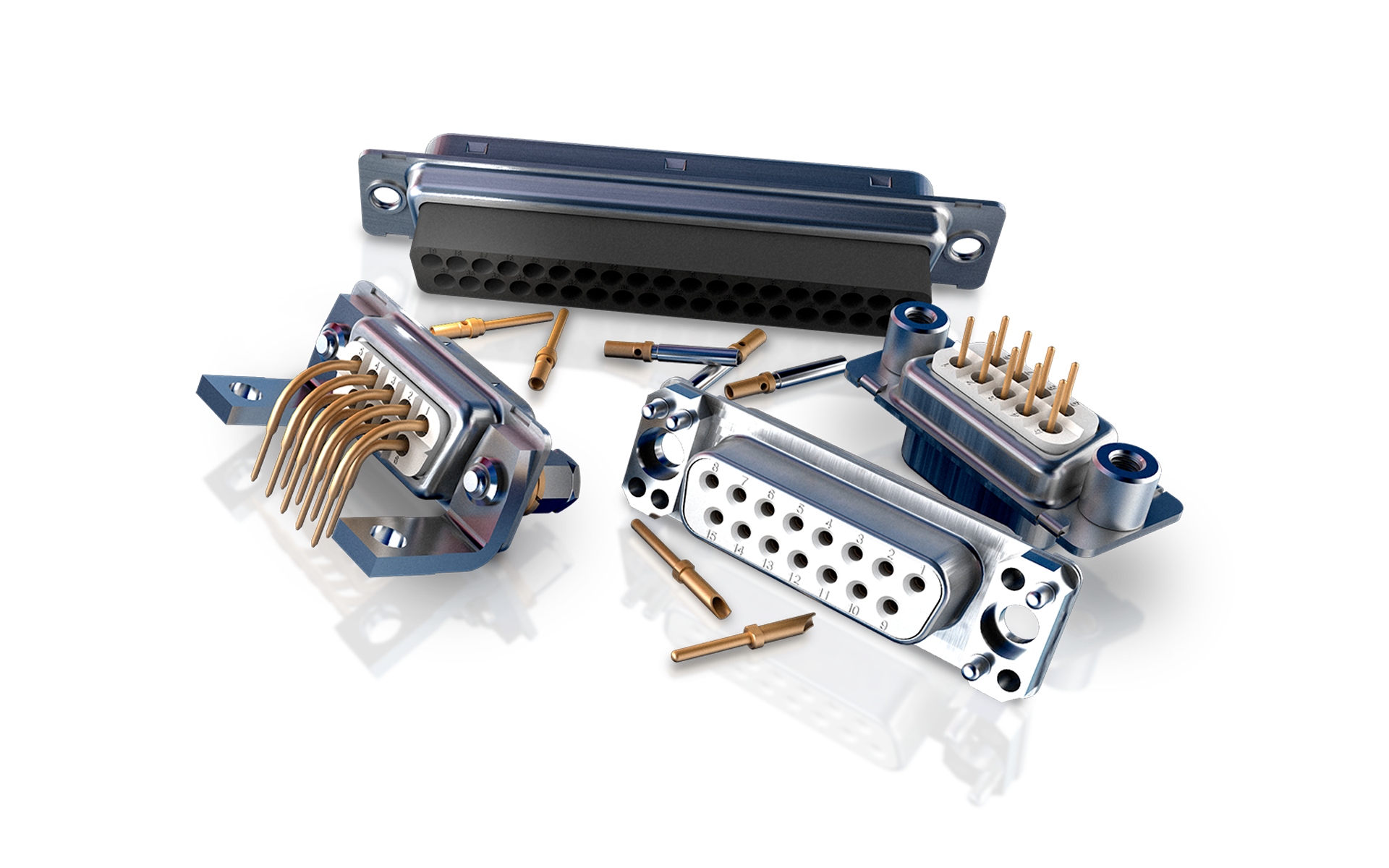

Inotec's aim is to ensure maximum interference protection, robustness and reliability for D-Sub connectors. For freely assemblable connectors, contact crimping is still the most reliable technique in terms of processing and function. For this reason, Inotec offers its own range of D-Sub crimp connectors.
Our precision-turned contacts made of special copper alloys are provided exclusively with a high-quality gold coating on a nickel backing. The tolerance-precise, process-reliable production in combination with a 1.3 μm gold layer in grade 1 enables the lowest contact resistances of less than 3 mΩ.
The trapezoidal collar of our connector shells shields the contacts from the effects of electromagnetic radiation. In order to optimize the ground contact of the shells, Inotec offers an alternative shield embossing variant with embossing on the bushing and pin side. In addition to the classic crimp connectors, Inotec also offers high-quality connectors in solder cup, dip soldering or other design variants.
High-end crimp connectors
- Developed according to DIN 41 652 and MIL-C-24308
- Precision Turned Crimp Contacts GK1 grade
- D-sub contacts with 1.3 μm gold plating
- Contact resistances < 3 mΩ
- Shield embossing in 2 design variants for optimum ground contact
- Compatible with all standardcompliant D-sub connectors
Hand soldering, dip soldering
and special connectors
- Grade GK1 with 1.3 μm gold plating
- GK2 and GK3 on request
- Individual configuration, bracket for PCB mounting or threaded bushings on request
Original Inotec coding system
The Inotec coding system requires only a few components and tools for all D-sub designs.
For cable-side coding, the coding elements are already integrated into the connector. This simplifies installation in the field, in particular.
On request, Inotec also manufactures HD connectors with coding.
